Material: Cr12MoV / SKD11 high-hardness tool steel
Manufacturing Process: Precision CNC milling, precision cavity machining, drilling and tapping, and part-number marking; supplied in matched L/R pairs
Specifications:
Non-standard customization according to drawings; dual-cavity die design
Non-standard customization is available.
Applications:
Specially designed for press-forming excavator track links and chain components; used in the stamping/forming production of construction-machinery undercarriage parts.
Technical Parameters
1. Machining accuracy: Cavity and locating-hole accuracy ±0.03 mm
2. Machining operations: Rough milling, finish milling of product cavities, drilling dowel-pin and screw holes, and engraving part numbers
3. Structure: Two cavities in a single die insert, allowing two track-link blanks to be formed in one pressing cycle
Product Function

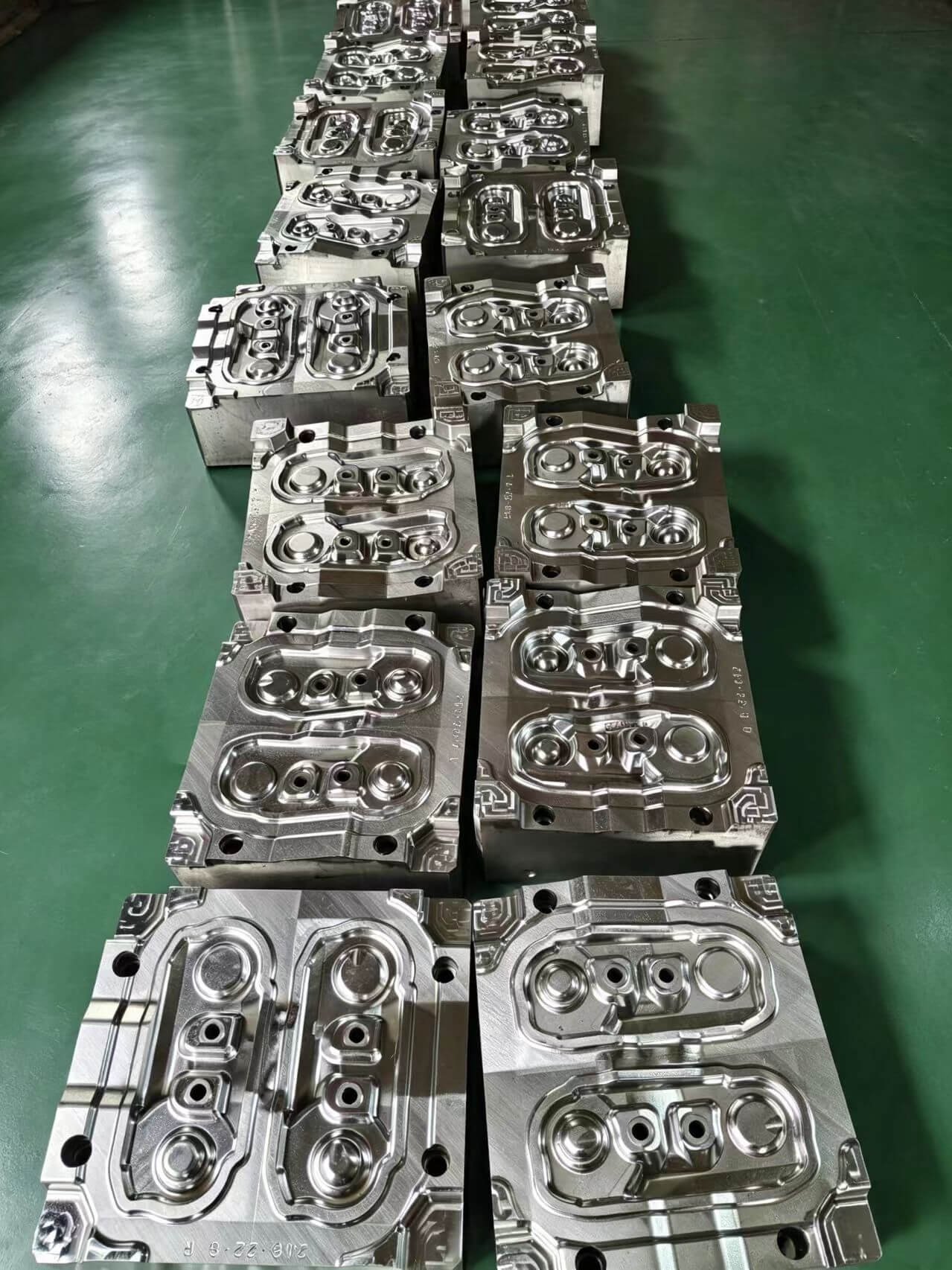

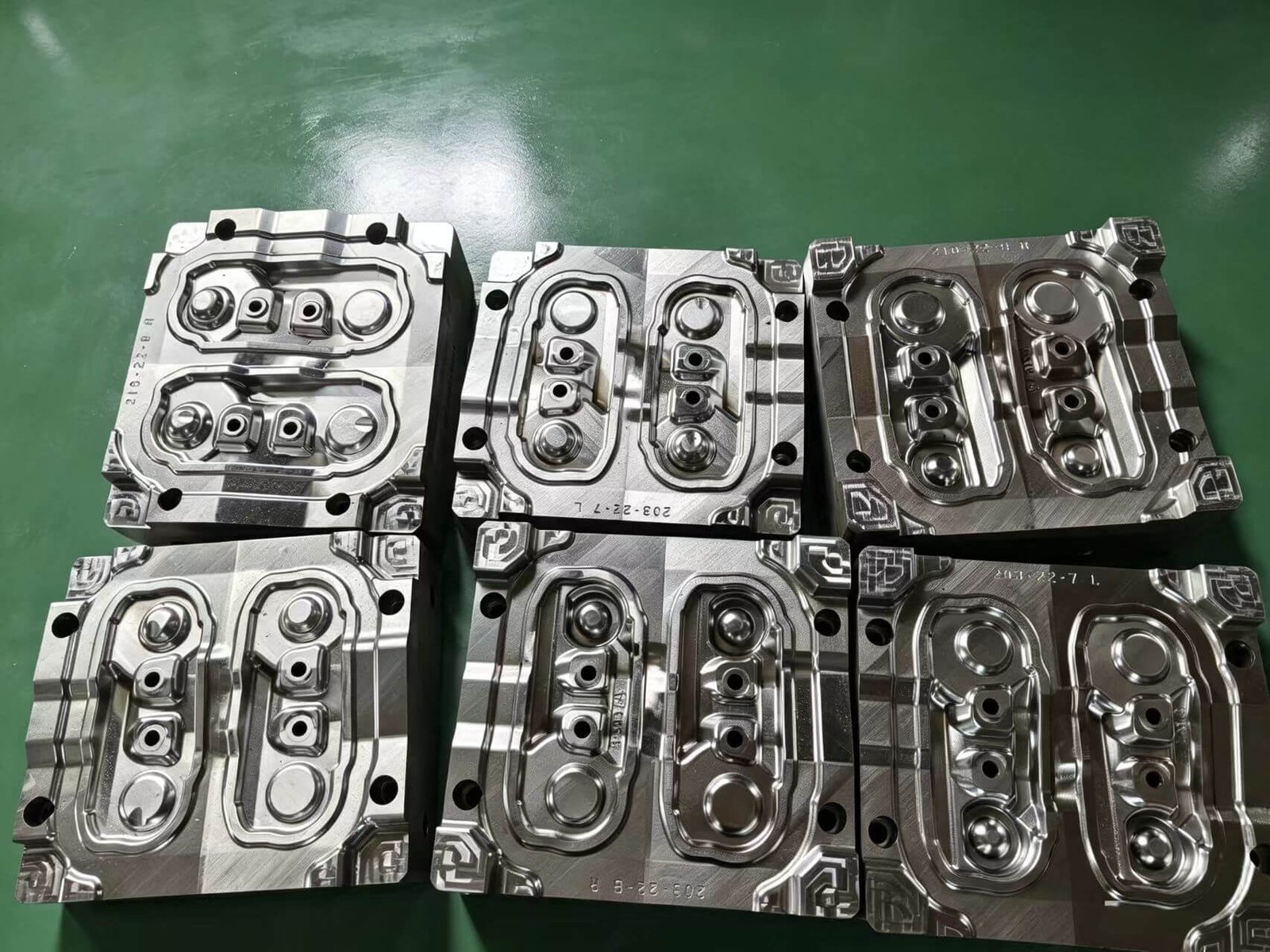

A core forming-die insert for crawler-track links. The cavity reproduces the geometry of the track link. Under press force, the steel blank is forged/pressed into an excavator track-link shape. Dowel-pin and screw holes are used to locate and secure the insert to the die base. Left- and right-hand inserts are used to produce symmetrical track-link components.
