Material: Cr12MoV / SKD11 tool steel
Manufacturing Process: CNC milling, heat-treatment hardening, precision grinding, and part-number marking
Specifications:
Non-standard customization according to drawings; part No. 203
Non-standard customization is available.
Applications:
Primarily used in automotive stamping dies to limit the travel of sliders and cam mechanisms; widely applied in automotive body sheet-metal stamping dies.
Technical Parameters
1. Heat-treatment hardness: HRC 56–60
2. Machining accuracy: ±0.005 mm
3. Surface roughness: Ra 0.8
4. Manufacturing operations: CNC machining, surface grinding, drilling, and part-number marking

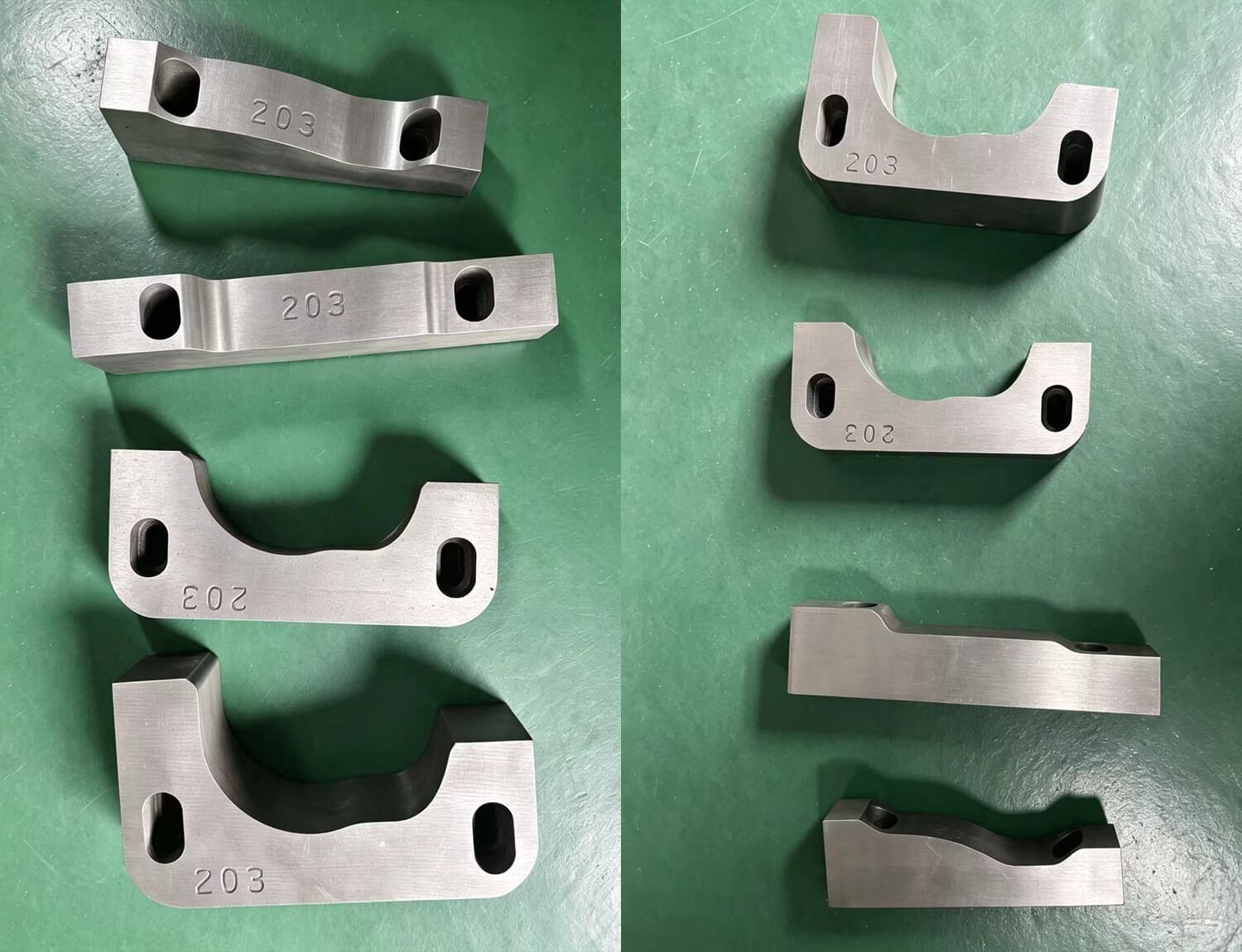

Product Function
A safety travel-limiting component for stamping dies. It restricts the maximum movement of cams and sliders to prevent overtravel, collision, and die damage. The slotted mounting hole allows bolted installation and minor positional adjustment, helping protect the complete die mechanism.
