Material: Die base made from No. 45 steel forging; forming inserts made from Cr12MoV / SKD11 tool steel
Manufacturing Process: CNC machining of the die base, precision machining of inserts, assembly and fitting, and part-number marking; equipped with guiding and locking components
Specifications:
Non-standard custom manufacturing based on the track-link design
Non-standard customization is available.
Applications:
Press forming of construction-machinery track links and production of excavator undercarriage components.
Technical Parameters
1. Machining accuracy: High-precision fitting of cavities, locating-pin holes, and assembly surfaces
2. Structure: Die base, forming inserts, limit blocks, fastening screws, and guide holes
3. Identification: Part numbers are engraved on the die to distinguish left- and right-hand tooling
Product Function

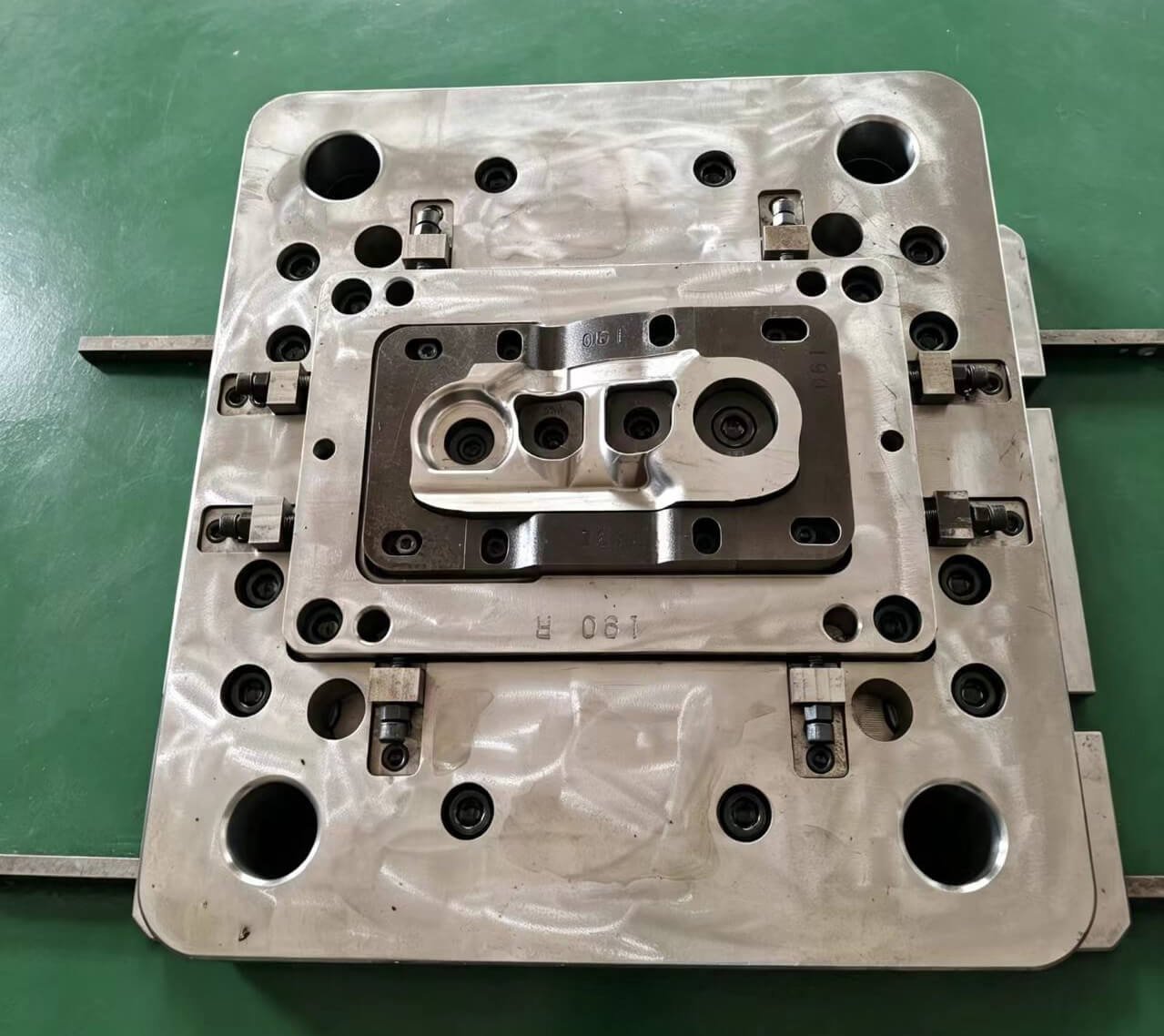

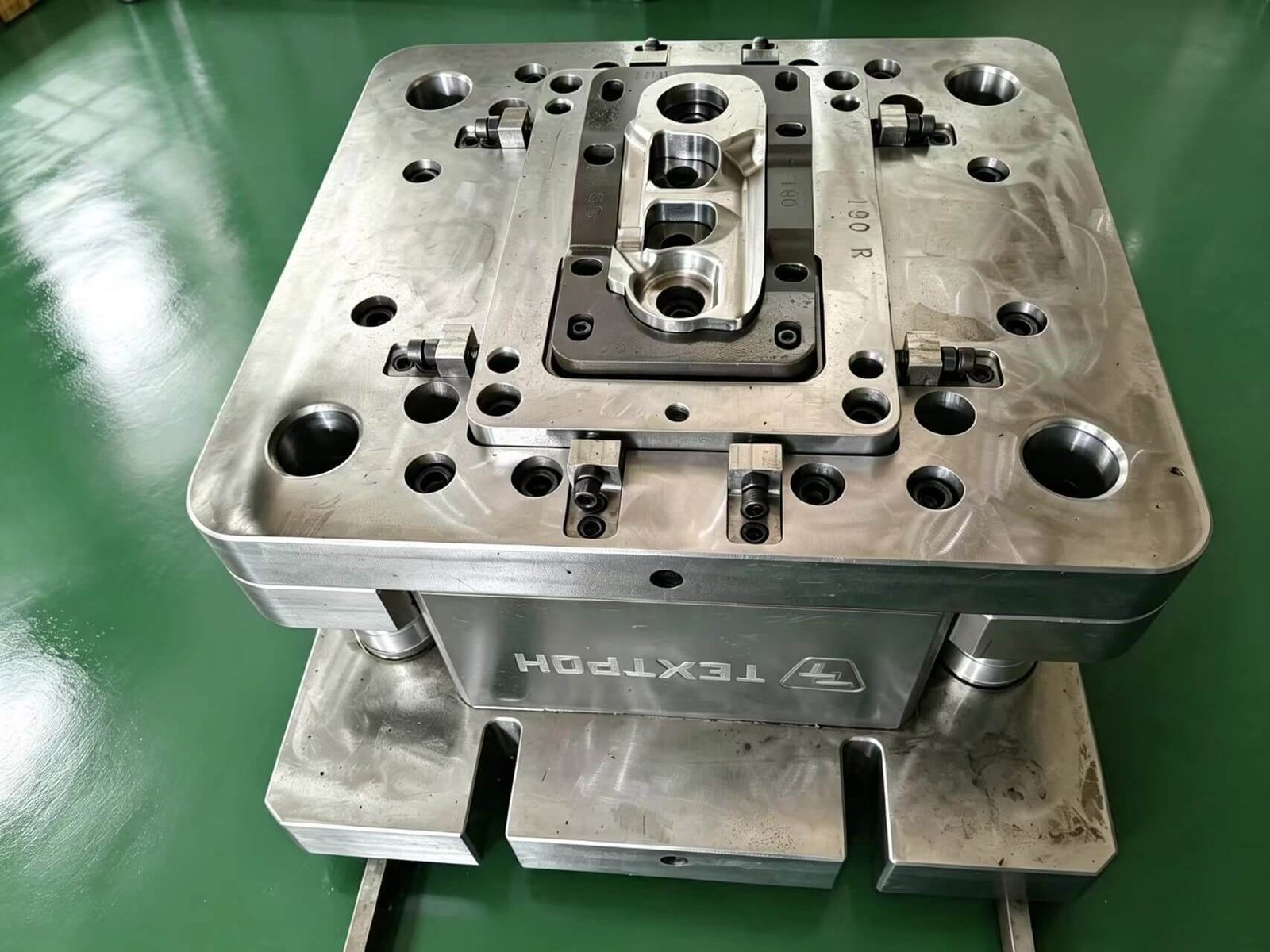

A complete track-link stamping/forming die installed on a press to forge or press steel plate into track-link blanks. The large holes serve as press/die guiding holes, while the surrounding screw blocks secure the forming inserts, enabling repeatable batch production of track links.
